Design, manufacturing, assembly and commissioning
The crane is of the cable-lifting jib type, articulated on a rotating frame, without balancing. A balancing counterweight is placed at the rear of the winch room.
The general design of the crane ensures mechanical leveling on both lifts.
The particularities of the crane :
- Nuclear safety requirements: earthquake, extreme wind, overpressure wave, fire, availability, integrity after attack, collision, load drop, etc.
- Operator cabin floor level: +30.00 m
- Level of the top of the maintenance tower (Pylon head): +82.00 m.
![Grue-10b](https://metal.fayat.com/var/site/storage/images/_aliases/dynamic_crop_bloc_focus_570/1/0/0/8/548001-2-fre-FR/f8ebe45f7579-Grue-10b-1.jpg)
Main lift120T from 15m to 47m and 50T to 60m range | Auxiliary lifting10T from 21 m to 65 m capacity and range | Height100 m, arrow raised | Execution2014 - 2016 |

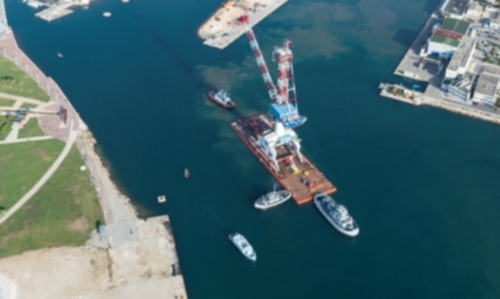

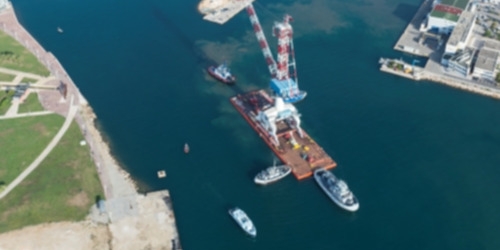

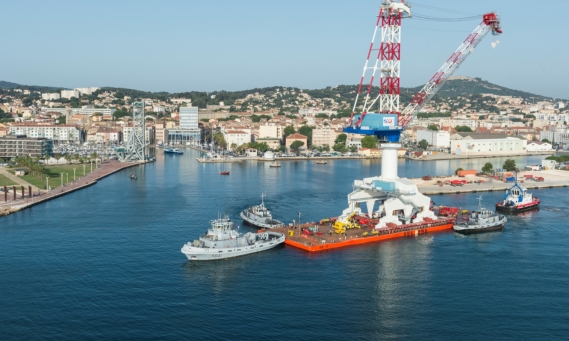

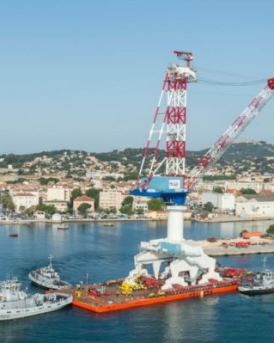

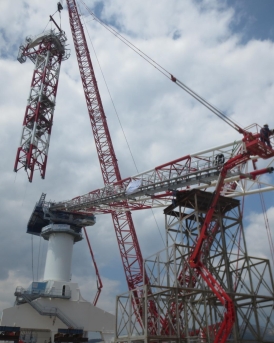

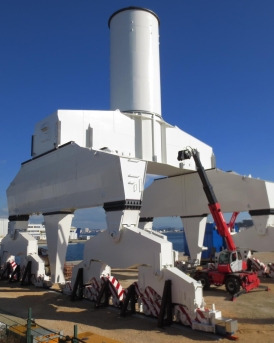

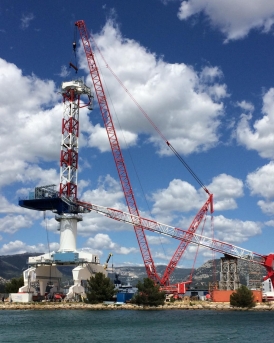

PARTICULARITY OF THE SITEThe crane was assembled at an assembly area in La Seyne-sur-Mer and transported by maritime barge to its final location at the Toulon Naval Base. |
